Sab nrauv Waterproof Phab Ntsa Panels
Sab nrauv phab ntsa vaj huam sib luag yog tseem hu ua cov phab ntsa hanging board. Nws yog ua los ntawm aluminium-zinc-plated steel phaj. Nws tsis tuaj yeem xeb mus txog 45 xyoo. Sab hauv yog puv nrog cov khoom siv tawv foamed polyurethane, uas ua ke nrog kev txuag hluav taws xob, tiv thaiv hluav taws thiab tiv thaiv ya raws; thiab hauv qab yog ua los ntawm fireproof thiab seepage-proof aluminium foil daim ntaub los yog aluminium foil ntawv, uas muaj peev xwm tiv thaiv tau dej vapor los ntawm invading lub rooj tsavxwm thiab lub tsev phab ntsa, thiab muaj kev cuam tshuam lub tsev.
Sab nrauv waterproof phab ntsa panels
Sab nrauv phab ntsa vaj huam sib luag yog tseem hu ua cov phab ntsa hanging board. Nws yog ua los ntawm aluminium-zinc-plated steel phaj. Nws tsis tuaj yeem xeb mus txog 45 xyoo. Sab hauv yog puv nrog cov khoom siv tawv foamed polyurethane, uas ua ke nrog kev txuag hluav taws xob, tiv thaiv hluav taws thiab tiv thaiv ya raws; thiab hauv qab yog ua los ntawm fireproof thiab seepage-proof aluminium foil daim ntaub los yog aluminium foil ntawv, uas muaj peev xwm tiv thaiv tau dej vapor los ntawm invading lub rooj tsavxwm thiab lub tsev phab ntsa, thiab muaj kev cuam tshuam lub tsev. Thaum tshav kub kub los txhim kho cov thermal rwb thaiv tsev nyhuv ntawm lub rooj tsavxwm.

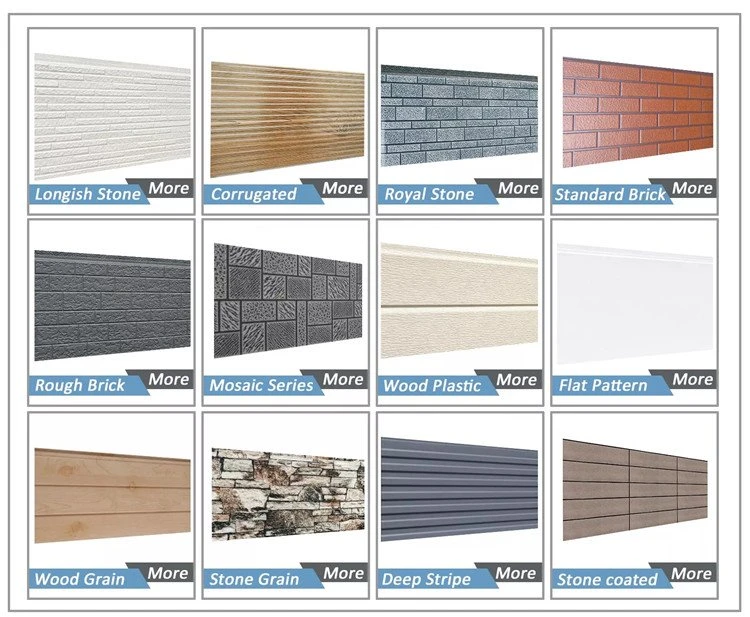

Xim xaiv
Kub muag: ntoo, pob zeb, cib, vaj huam sib luag tiaj tus, zawj
Specification
Yam khoom | Specifications |
Vaj Huam Sib Luag Dav | 3 83mm |
Vaj Huam Sib Luag Thickness | 16 mm / 20 mm rau sab nrauv phab ntsa panels; 14/15 mm rau Sab Hauv Phab Ntsa Panels |
Standard Vaj Huam Sib Luag Dimension (L×W×H) | 3800 × 383 × 16 mm rau sab nrauv phab ntsa panels 3800 × 383 × 14 hli rau Sab Hauv Phab Ntsa Panels |
Cov khoom siv tseem ceeb | PU (polyurethane ua npuas ncauj) |
Nto khoom | PPGI (Pre-painted Galvanized Hlau) / Pre-painted 55 feem pua Al-Zn Coated Steel Xim thiab Embossed Aluminium |
Nto Hlau Daim tawv nqaij Thickness | 0.25 hli - 0.4 hli |
Hauv qab Txheej Khoom | Aluminium ntawv nyiaj (Tshav kub rwb thaiv tsev & dej pov thawj) |
Hluav taws kub-resistance Rate | Hluav taws kub Nplaim retardant |
Daim ntawv thov | Phab ntsa, ru tsev, phab ntsa cladding Tsev, Villa, Chaw Ua Haujlwm, Tsev Kawm Ntawv, Showroom, Warehouse, Prefab Tsev thiab lwm yam. |
Kev teeb tsa | Modular tsim los ua kom lub installation yooj yim, npaum thiab tus nqi-phooj ywg. |
MOQ | 200 M2 |
Puas yog cov phab ntsa tsis muaj dej tsis muaj dej puas muaj cov thermal rwb thaiv tsev?
Cov nyhuv thermal rwb thaiv tsev nyob ntawm qhov thermal conductivity ntawm cov khoom. Qhov siab dua qhov thermal conductivity, qhov ua tau zoo ntawm kev hloov hluav taws xob ntau dua thiab qhov ua tau zoo ntawm thermal rwb thaiv tsev. Sab nrauv waterproof phab ntsa panels sandwich txais high-density polyurethane foaming technology. Polyurethane foaming muaj qhov thermal conductivity qis tshaj plaws ntawm cov ntaub ntawv thermal rwb thaiv tsev uas paub txog, txog 0.024w/m·K, uas yog qis dua lub teb chaws kev ua haujlwm siab. Lub thermal conductivity ntawm cov khoom siv thermal rwb thaiv tsev qhia tau hais tias muaj zog ua haujlwm ntawm polyurethane thermal rwb thaiv tsev khoom. Siv hlau carved panels ua cov ntaub ntawv rwb thaiv tsev sab nrauv, lub tsev yuav ua "sov rau lub caij ntuj no thiab txias rau lub caij ntuj sov". Thaum lub caij ntuj sov, huab cua kub sab nraud tsis tuaj yeem hloov mus rau hauv chav tsev, thiab qhov kub hauv tsev yuav qis dua. Koj tuaj yeem qhib lub tshuab cua txias tsawg dua lossis tsis tau. Nws yuav tsis cuam tshuam rau chav tsev, thiab cov cua sov hauv tsev kuj tseem yuav raug thaiv hauv tsev, txo cov nqi cua sov thiab ua kom muaj kev nplij siab nyob hauv tsev.

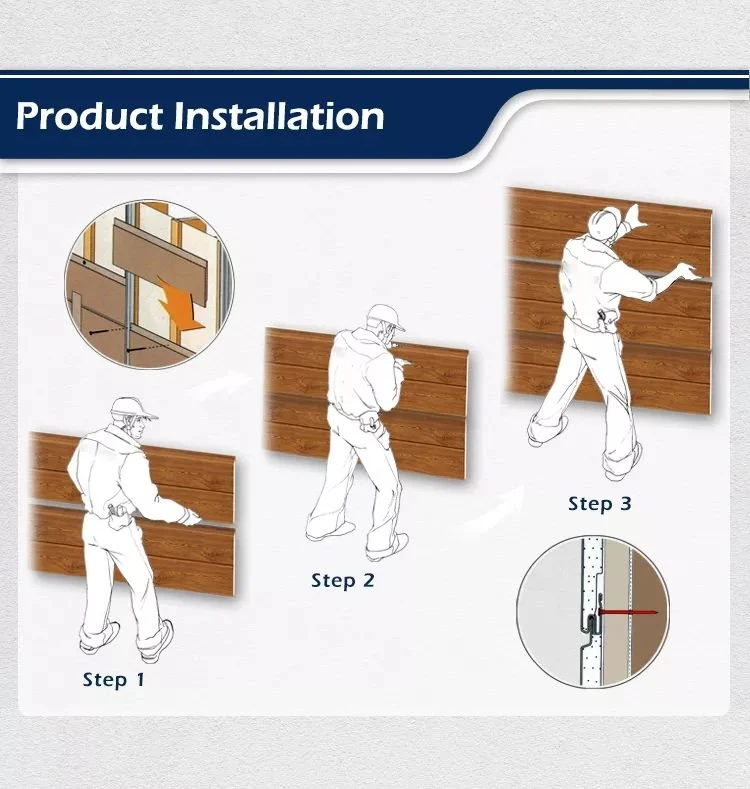

Kev ceev faj rau installation ntawmsab nrauv phab ntsapanels:
1. Thaum tuav thiab thauj khoom thiab thauj khoom, nrog rau kev thauj mus los thiab kev thauj mus los, yuav tsum ceev faj kom tsis txhob muaj kev sib tsoo ntawm lub rooj tsavxwm.
2. Qhov chaw nyob qhov twg cov laug cam yuav tsum tau ua kom cua thiab qhuav, thiab qhov chaw yuav tsum tiaj tus thiab ruaj khov; Thaum siv cov ntaub pua rooj ntoo, qhov sib nrug ntawm cov ntoo square yuav tsum tsis txhob loj dhau los xyuas kom meej tias cov khoom yuav tsis deformed vim nws lub ntiajteb txawj nqus.
3. Thaum cov hlau carved phaj yog siv rau kev txiav, txiav hlau scraps yuav txuas rau saum npoo ntawm lub phaj thiab qhov incision, uas yooj yim rau xeb. Cov khoom seem hlau yuav tsum tau ua tib zoo tshem tawm, thiab cov hnab looj tes tiv thaiv yuav tsum hnav kom tsis txhob khawb tes.
4. Ua tib zoo tiv thaiv lub rooj tsavxwm saum npoo thaum tsim kho kom tsis txhob khawb, cuam tshuam, thiab cov cuab yeej kov lub rooj tsavxwm
5. Zam kev tsim kho thaum los nag: Thaum lub sij hawm tsim kho, tiv thaiv sab hauv ntawm lub rooj tsavxwm los ntawm kev sib cuag nrog dej, thiaj li tiv thaiv cov dej sab hauv los ntawm corroding thiab xeb los ntawm qhov chaw thiab shortening nws cov kev pab cuam lub neej.
Cov phiaj xwm rau cov neeg siv khoom
1. Sab nrauv phab ntsa sandwich panels yog tsim rau cov chav ua haujlwm teeb pom kev zoo xws li ntau chav txawb, chav nyob ib ntus, thiab chav yooj yim, thiab lub teeb steel mobile chav.
2. Kev kho dua tshiab ntawm phab ntsa sab nrauv tsis tas yuav tsum muaj kev kho mob yooj yim, thiab raug kho ncaj qha rau ntawm phab ntsa qub. Tus nqi yog pheej yig dua ntawm kev ua lag luam
Nyob rau hauv cov tsoos phab ntsa kho dua tshiab, saum npoo ntawm raw khoom yuav tsum tau muab tshem tawm ua ntej, uas yuav inevitably rhuav tshem cov rwb thaiv tsev txheej (xws li benzene board), yog li nce tus nqi ntawm renovation.
3. Kev tsim kho yog yooj yim, ceev, teeb meem-txuag thiab kev txuag hluav taws xob, uas tsis tsuas yog txo cov txheej txheem ntawm kev ua haujlwm thiab lub sijhawm ntawm cov neeg ua haujlwm, tab sis kuj txo cov nqi tag nrho.
Shipping thiab pob
Lub vaj huam sib luag yog qhwv los ntawm cov thawv tuab lossis pob yooj yim
8/10 pcs ib square meter
Vim li cas thiaj xaiv peb?

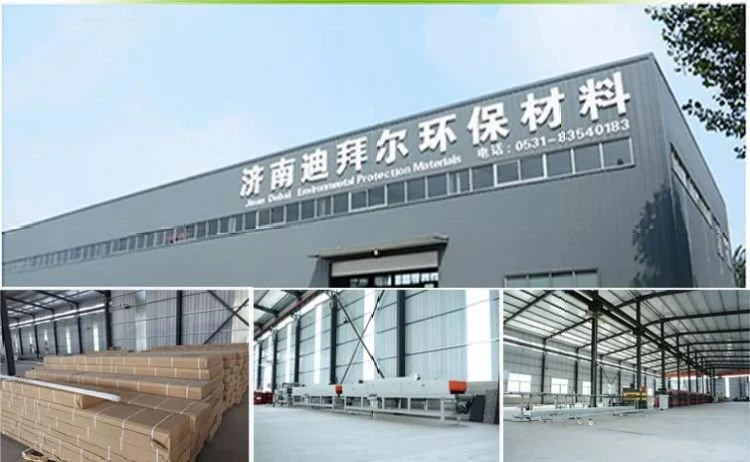

Jinan Dibaier Environmental Protection Materials Co., Ltd. yog ib lub tuam txhab high-tech ua ke nrog kev tsim, kev tsim kho, kev tsim khoom, kev muag khoom thiab kev pabcuam ntawm cov hlau carving board, chav ua haujlwm thiab lub rooj muag khoom.
Cov ntaub ntawv phab ntsa tshiab ntawm Dibaier muaj cov yam ntxwv zoo li thermal rwb thaiv tsev zoo, suab rwb thaiv tsev thiab suab nrov txo cov teebmeem, lub teeb yuag, siab zog, kev tsim kho yooj yim thiab corrosion kuj. Cov tsos yog elegant thiab reusable.Thiab nws cov kev pab cuam lub neej yog ntev thiab huab cua kuj yog zoo. Lub tuam txhab muaj zog technical force, standardized tswj thiab zoo meej technology. Nrog kev tshaj lij thev naus laus zis, cov cuab yeej ua lag luam, kev tswj hwm kev tshawb fawb thiab kev pabcuam zoo, peb tau txais txiaj ntsig zoo los ntawm txhua qhov chaw ntawm lub neej. Peb cov khoom tuaj yeem siv rau hauv cov haujlwm hauv qab no: cov tsev siab siab, niaj hnubvillas, lub teeb steel rhiav, lub tsev txawb, cov thawv European thiab Asmeskas, kev kho dua tshiab ntawm cov phab ntsa sab nrauv ntawm cov tsev qub, kev txav ntawm qhov chaw zoo nkauj thiab cov tsev mus tas li, ib puag ncig tus phooj ywg cov chav dej, ntau yam zoo nkauj thiab muaj zog-savingbuildings.
FAQ
Q: Peb puas tuaj yeem tuaj xyuas koj lub Hoobkas?
A: Tseeb, koj tau txais tos tuaj rau peb lub Hoobkas txhua lub sijhawm.
Q: Peb puas tuaj yeem tau txais cov qauv?
A: Kom paub meej, Peb tuaj yeem muab cov qauv dawb
Q: Ntev npaum li cas peb tuaj yeem cia siab tias yuav tau txais cov qauv?
A: Cov qauv yuav raug xa tawm tsis pub dhau 3-5 hnub.
Q: Peb puas tuaj yeem xaj cov khoom sib txawv?
A: Kom paub meej, Peb tuaj yeem tsim raws li cov neeg siv khoom xav tau.
Q: Lub sijhawm khoom xa tuaj yog dab tsi?
A: 3-5hnub .Customized khoom 15-30 hnub.
Q: Cov nqe lus them nqi yog dab tsi?
A: T / T, L / C, txhua qhov kev txhawb nqa.
Q: Koj tus MOQ yog dab tsi
A: Ib xim 100 m² .Ob xim 200 m².
Q: Koj ua li cas los xyuas tag nrho cov khoom hauv cov kab ntau lawm?
A: Peb muaj cov chaw kuaj xyuas thiab cov khoom tiav.
Cim npe nrov: sab nrauv waterproof phab ntsa panels, Tuam Tshoj, manufacturers, lwm tus neeg, Hoobkas, nqe, kev muag khoom
