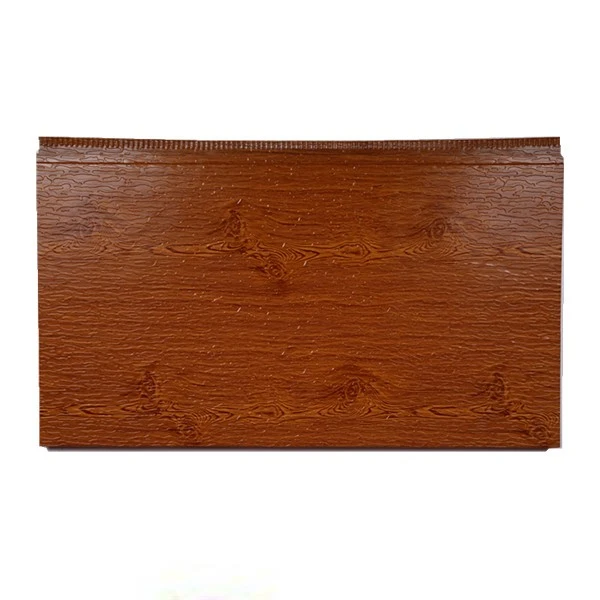

Decorative Pu Sandwich Vaj Huam Sib Luag
Hniav PU Sandwich vaj huam sib luag tseem hu ua hlau nto embossed rwb thaiv tsev hniav board, feem ntau hu ua hlau rwb thaiv tsev hniav board. lub thoob ntiaj teb lub teeb-hnyav phab ntsa khoom, integrates kho kom zoo nkauj, rwb thaiv tsev, lub zog-efficiency, hluav taws-proofing ua ke. Nws cov hlau nto tuaj yeem tsim thiab embossed rau txhua yam ntawm cov qauv: cib, pob zeb, pobzeb, ntoo, tiaj tus board ect.
Xa kev nug
Hauj lwm lawm
hniav PU sandwich vaj huam sib luag
Khoom Description
Nws xaiv cov ntawv zoo aluminium zinc plated (galvanized) steel ntawv, thiab qhov saum npoo txais cov huab cua resistant tshwj xeeb txheej tshuab, kom nias sib txawv embossed peb-dimensional cib lis, pob zeb lis, ntoo grain thiab lwm yam qauv los ntawm kev siv peb-dimensional concave thiab convex. steel roller carved los ntawm lub ntiaj teb tam sim no advanced embossed carving tshuab; riffled phaj nto ntaub ntawv nplua nuj xim los ntawm theem nrab painting. Lub embossed carved riffled steel ntawv tau nce lub zog nyob rau tib lub sijhawm, thiab cov huab cua siab saum npoo av muaj lub zog ruaj khov thiab kev huv ntawm tus kheej, thiab tsis ploj mus rau 15 xyoo; Kev pabcuam lub neej ntawm cov ntawv hlau tuaj yeem siv sijhawm ntev dua 45 xyoo.
Kev kho cov khoom nruab nrab ntawm cov khoom siv nruj polyethane ua kom zoo nkauj polyurethane kho mob, thiab sab hauv ntawm polyurethane muaj ntau cov npuas thiab lawv tau sib txuas nrog txhua lwm yam; Polyurethane kuj muaj lub zog ruaj khov nrog kev sib khi lub zog ntau dua li lawv lub zog tawg-pov thawj, uas yog complately raws li cov kev cai ntawm sab nrauv phab ntsa thermal rwb thaiv tsev engineering hauv peb lub teb chaws; piv nrog cov tam sim no hauv tsev zoo tib yam phlystyrene nrog thermal conductivity coefficient λ Tsawg dua los yog sib npaug rau 0. / mk, thermal conductivity coefficient yog nce 30 feem pua -40 feem pua ; polyurethane kuj muaj kev ruaj ntseg zoo, muaj peev xwm tiv taus rau sab nrauv wal deformation, thiab tsis cuam tshuam los ntawm kub, av noo, dryness thiab lwm yam tsis zoo. Thaum qhov kub qis dua 130 degree, qhov qub peb tuaj yeem yog 30 xyoo; thiab thaum qis dua 50 degree, lub neej kev pabcuam tuaj yeem ncav cuag 70 xyoo.
Cov khoom ntawm sab nraub qaum txais cov ntawv tshwj xeeb txhuas ntawv (zaj duab xis) ntawm kev ua haujlwm siab; aluminium ntawv ci muaj cov ntaub ntawv pov thawj zoo heev, tiv thaiv cov cuab yeej thiab thermal reflection muaj nuj nqi, thiab muaj qhov zoo ntawm cov rwb thaiv tsev kub, noo noo, tiv thaiv dej thiab tiv thaiv hluav taws; kev ua tau zoo tsis tuaj yeem cuam tshuam rau hauv qhov chaw ntub dej; Nws tuaj yeem cuam tshuam txog qhov kub thiab txias, thiab tiv thaiv kev sib kis ntawm polyurethane ua npuas ncauj, ua rau nws tsis yooj yim rau kev laus, thiaj li lav qhov kev ua haujlwm ntawm cov phaj rwb thaiv tsev.
Lub installation ntawm hlau hniav board yog yooj yim heev, adopting concave thiab convex plug-in catch groove kev twb kev txuas; lub stallation ntawm steel keel thiab ntoo keel tuaj yeem siv tus kheej tapping ntsia hlau los kho tis ncaj nraim ntawm ib sab ntawm lub rooj tsavxwm zoo nkauj; cov cement cib phab ntsa nto tuaj yeem txais cov phom phom ntsia hlau rau kev txhim kho ncaj qha. Tsis muaj pov tseg thiab suab nrov thaum tsim kho, thiab cov khoom tuaj yeem rov qab siv tau ntau zaus.
Khoom Loj
| Thickness | 16mm / 20mm, 5/8inch, 25/32inch |
| Dav | 383mm, 15 5/64 nti |
| Ntev | 2000mm ~ 6000mm, 78 47/64 nti ~ 236 7/32 nti |
| Vaj huam sib luag hnyav | 3.5-3.7kg / m2 |
| Hlau alloy muaj pes tsawg leeg | Aluminium 55 feem pua, Zinc 43.5 feem pua, Silicon 1.5 feem pua, thiab lwm yam. |
Khoom zoo
Yuav ua li cas PU insulated hlau carved phab ntsa board hniav vaj huam sib luag txuag nyiaj?
Hlau carved board PU insulated phab ntsa kho kom zoo nkauj panels yog ib qho kev nqis peev zoo rau txhua tus tswv tsev uas xav txuag nyiaj hauv tsev décor thiab nqi zog.
Cov boards no muaj ntau yam txiaj ntsig uas tuaj yeem pab koj txuag nyiaj hauv lub sijhawm ntev, xws li txo koj lub zog noj, txhim kho koj lub tsev cov rwb thaiv tsev, thiab muab kev ruaj khov thiab kev tu qis rau koj cov phab ntsa.
PU insulated hlau carved phab ntsa hniav boards tuaj yeem pab txo koj lub zog noj.
Txo kev siv hluav taws xob
Zoo heev thermal rwb thaiv tsev
Txuag koj cov nqi zog
Ua ntej, PU insulated hlau carved phab ntsa board hniav panels tuaj yeem pab txo koj lub zog noj. PU rwb thaiv tsev yog ib hom polyurethane ua npuas ncauj uas muaj thermal rwb thaiv tsev zoo heev. Thaum siv nrog cov hlau carved phab ntsa dai kom zoo nkauj, nws tuaj yeem pab tswj qhov kub thiab txias hauv koj lub tsev, txo qhov xav tau cua sov thiab cua txias. Qhov no tuaj yeem ua rau kev txuag nyiaj tseem ceeb ntawm koj cov nqi hluav taws xob, tshwj xeeb tshaj yog nyob rau hauv cheeb tsam uas muaj qhov kub thiab txias.
PU insulated hlau carved phab ntsa dai kom zoo nkauj tuaj yeem txhim kho koj lub tsev rwb thaiv tsev.
Thib ob, PU rwb thaiv tsev yog paub txog nws lub peev xwm los tiv thaiv kev kub ntxhov, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau cov tswv tsev uas xav txhim kho lawv lub tsev lub zog ua haujlwm. Thaum ntsia koj cov phab ntsa, cov laug cam no tuaj yeem pab ua kom koj lub tsev sov thaum lub caij ntuj no thiab txias thaum lub caij ntuj sov, txo qhov xav tau cua sov thiab cua txias. Qhov no tuaj yeem ua rau kom txuag tau mus ntev ntawm koj cov nqi hluav taws xob, nrog rau txo koj cov pa roj carbon monoxide.
PU insulated hlau carved phab ntsa kho kom zoo nkauj boards yog ib qho kev ruaj khov thiab kev tu qis rau koj cov phab ntsa..
Thib peb, cov boards no yog tsim los ntawm cov ntaub ntawv zoo uas tiv taus cov dej noo, kab tsuag, thiab hluav taws, ua rau lawv muaj peev xwm zoo rau txhua tus tswv tsev. Lawv kuj yog ib qho yooj yim los ntxuav thiab tswj, tsuas yog yuav tsum tau so sai nrog cov ntaub ntub dej kom lawv saib lawv qhov zoo tshaj plaws. Qhov no txhais tau tias koj yuav tsis tas siv nyiaj rau cov khoom siv tu tsev kim lossis ntiav ib tus kws tshaj lij los ntxuav koj cov phab ntsa kom zoo.
Hauv kev xaus, PU insulated hlau carved phab ntsa kho kom zoo nkauj boards yog ib qho kev nqis peev zoo rau txhua tus tswv tsev uas xav txuag nyiaj hauv tsev décor thiab cov nqi hluav taws xob. Lawv tuaj yeem pab koj txo koj txoj kev siv hluav taws xob, txhim kho koj lub tsev rwb thaiv tsev, thiab muab cov tshuaj tiv thaiv tsis zoo rau koj cov phab ntsa. Nrog rau tag nrho cov txiaj ntsig no, nws tsis xav tias ntau thiab ntau tus tswv tsev tau tig mus rau PU insulated hlau carved phab ntsa dai kom zoo nkauj rau lawv lub tsev.
|
Cov khoom kuaj
|
Cov qhabnias xeem
|
|
Surface density (cov khoom tseem ceeb)
|
42kg/m3
|
|
Compressive zog (cov ntaub ntawv tseem ceeb)
|
295kp ua
|
|
|
Qhov nruab nrab kub: 10 degree 0.022W/(mk)
|
|
Qhov nruab nrab kub: 25 degree 0.024W/(mk)
|
|
|
Kev nqus dej
|
0.8 feem pua
|
|
Vertical tensile zog (sib sab)
|
1,6kp ua
|
|
|
Ntsug 5.44 Mpa
|
|
Kab rov tav 3.88 Mpa
|
|
|
ntsev tsuag kuj (steel sheet)
|
Tsis muaj kev puas tsuaj hauv 500h (tsis muaj ntsev tsuag)
|
|
Acid resistance (steel sheet)
|
Tsis muaj qhov txawv txav hauv 24h (5 feem pua sulfuric acid)
|
|
Alkali tsis kam (steel sheet)
|
Tsis muaj qhov txawv txav hauv 24h (5 feem pua sodium oxychloride)
|
|
Kub kub tsis kam (steel sheet)
|
600 degree
|
|
Qhov feem pua ntawm cheeb tsam ze (cov khoom tseem ceeb)
|
99.70 :ua
|
|
Al-Zn txheej txheem
|
55-57g/m2 (55% txhuas, 43% zinc)
|
|
Cua siab tsis kam (sib sab)
|
10kpa tus qauv tsis puas
|
|
Kab rov tav firing (cov khoom tseem ceeb)
|
HF-1
|
|
combustion kev ua tau zoo
|
Qib B
|
|
Thaum tshav kub kub hloov coefficient
|
1.50W (m2.K)
|
|
Cuab yeej suab rwb thaiv tsev
|
25dB ib
|
|
Formaldehyde emission (sib sab)
|
Tsis pom
|
|
Fluorescent UV teeb aging (steel sheet)
|
Tsis muaj qhov txawv txav ntawm qhov tsos
|
Cov khoom ntim
| Ntim | Cartoon |
| Daim | 10pcs / carton, 8pcs / thawv |
| Pob Loj | 4010mm * 41mm * 170mm (10pcs / thawv) 4010mm * 41mm * 138mm (8 pcs / thawv) |
xim nyhuv
Daim duab xim
Muaj ntau tshaj 100 tus qauv ntawm shanghe hlau sidings. Cov nyhuv kho kom zoo nkauj zoo heev qhia txog qib ntawm cov tsev. Qhov yooj yim thiab hloov tau yooj yim disassembly thiab sib sau ua ke ntawm cov hlau sidings ua rau kev hloov cov qauv ntawm cov phab ntsa yooj yim.Metal sidings tsis yog tsuas yog haum rau thermal rwb thaiv tsev kho kom zoo nkauj ntawm phab ntsa sab nrauv ntawm cib-pob zeb tshiab, thav duab qauv, steel qauv, thiab lub teeb yuag lub tsev, tab sis kuj rau lub zog txuag kev kho dua tshiab ntawm cov tsev uas twb muaj lawm, nrog rau kev kho kom zoo nkauj sab hauv thiab sab nrauv.
Kub Muag
Polyurethane ua npuas ncauj sandwich sab nrauv phab ntsa panels
Kev teeb tsa thiab siv
Cov cuab yeej / Khoom siv: Hluav taws xob laum, nthuav dav ntsia hlau, tus kheej tapping ntsia hlau, hlau carved phaj
1. Ua ntej tso cov hlau carved board rau ntawm phab ntsa, lub hwj chim ntawm tes hluav taws xob laum, thiab tom qab ntawd siv lub tshuab hluav taws xob rau punch qhov ntawm phab ntsa ntawm qhov txuas ntawm cov hlau carved board.
2. Tom qab ntawd nruab cov ntsia hlau nthuav dav rau lub qhov thiab kho lawv nrog tus kheej tapping screws.
3. Thaum kawg, lwm lub rooj tsavxwm tau muab tso rau saum lub rooj tsav tsheb ruaj khov hlau, thiab qhov zawj ntawm lwm lub rooj tsavxwm tau muab tso rau hauv lub qhov rooj ntawm lub rooj tsavxwm ruaj khov. Tom qab ntawd rov ua haujlwm saum toj no.
4. Tom qab kev teeb tsa, kev kho kom zoo nkauj ntawm phab ntsa sab nrauv yog zoo nkauj, txuag hluav taws xob thiab rwb thaiv tsev kub, hluav taws kub, moistureproof thiab suab rwb thaiv tsev.
Cov teeb meem xav tau kev saib xyuas:
Ua phab ntsa theem ua ntej installation.
Thaum txhim kho hlau carving board kuj xav nrhiav qib
4. Tom qab kev teeb tsa, kev kho kom zoo nkauj ntawm phab ntsa sab nrauv yog zoo nkauj, txuag hluav taws xob thiab rwb thaiv tsev kub, hluav taws kub, moistureproof thiab suab rwb thaiv tsev.
Cov teeb meem xav tau kev saib xyuas:
Ua phab ntsa theem ua ntej installation.
Thaum txhim kho hlau carving board kuj xav nrhiav qib
Txheej txheem ntau lawm
Pob thiab thauj:
Packing: Carton packing plus Ntim siv
(1) Board txee loj: Nws yog feem ntau yuav tsum yog 5.8m rau 20 ko taw txee, Raws li kev xav tau ntawm cov neeg siv khoom, tag nrho ntev ntawm 40 ko taw txee yog tsawg dua 11.8 meters (2) Cov ntaub ntawv thauj khoom: Qhov loj thiab specification ntawm lub 20 ko taw me txee yog hais txog 5.898 × 2.352 × 2.385m, thiab theem sib dhos yog hais txog 1300 (tsis suav qhov chaw seem seem) 40 lub txee loj (siab txee): 12.032 × 2.352 × 2.69M, txog 3300 qhov chaw tiaj tus (tsis suav cov khoom seem. )
FAQ
Q: Koj lub sijhawm xa khoom yog dab tsi?
Lub sijhawm xa khoom yog winthin 15 hnub tom qab peb tau txais qhov tso nyiaj.
Q: Qhov chaw nres nkoj shipping yog dab tsi?
Peb xa cov khoom ntawm Qingdao chaw nres nkoj.
Q: Koj cov nqe lus them nqi yog dab tsi?
Q: Koj cov nqe lus them nqi yog dab tsi?
Peb lees txais 30 feem pua T / T ua ntej, 70 feem pua hauv lub sijhawm xa khoom. Los yog L/C thaum pom.
Q: Koj puas yog cov chaw tsim khoom?
Q: Koj puas yog cov chaw tsim khoom?
A: Yog
Q: Koj cov khoom tseem ceeb yog dab tsi?
A: hlau phab ntsa cladding, steel qauv tsev thiab lwm yam.
Q: Koj lub lag luam tseem ceeb nyob qhov twg?
A: Peb yog cov tuam txhab qhia txog tib neeg thiab peb lub khw tseem ceeb yog cov teb chaws Asia, Middle East, South Africa, Russia, South
Teb Chaws Asmeskas thiab lwm yam. Peb xa li ntawm 1000-1500 thawv ib xyoos
Teb Chaws Asmeskas thiab lwm yam. Peb xa li ntawm 1000-1500 thawv ib xyoos
