Dibaier PU Insulated Hlau Vaj Huam Sib Luag Lub Teeb Yooj Yim Txhim Kho Lub Tsev Khoom
Hom & Khoom Txheej txheem cej luam 01 Founded hauv 2018, Jinan Dibaier Environmental Protection Materials Co., Ltd. yog ib lub tuam txhab high -tech enterprise integrating R&D, manufacturing, sales, and service, specializing in new environmental protection materials such as wall panels, decorative metal...
Brand & Product Overview
01
Founded hauv 2018, Jinan Dibaier Environmental Protection Materials Co., Ltd. yog ib lub tuam txhab high -tech enterprise integrating R&D, manufacturing, sales, and services, specializing in new environmental protection material such as wall panels, decorative metal panels, and insulation and decoration integrated panels. Ua raws li lub tswv yim ntawm "Kev Pabcuam Lub Zej Zog, Kev txuag hluav taws xob & Kev Tiv Thaiv Ib puag ncig, Kev Yooj Yim & Kev Ua Haujlwm, Kev Ua Haujlwm & Kev Tshwj Xeeb", lub tuam txhab tau txais kev qhuas thoob plaws hauv tsev thiab txawv teb chaws nrog siab - cov khoom zoo thiab cov kev pabcuam zoo meej.
02
Los ntawm - kev koom tes tob nrog cov chaw tshawb fawb, cov txheej txheem tsim tawm tshiab thiab cov cuab yeej siv siab heev, Dibaier cov khoom xa tawm tau nce xyoo los ntawm xyoo. Kev ua tiav ntawm Longshan Factory tshiab tau ua kom muaj peev xwm ntau lawm los ntawm 30%, thiab qhov chaw cia yog ntau tshaj 3 npaug ntawm qhov pib theem. Cov khoom siv dav siv hauv cov tsev nyob hauv tsev, villas, lub teeb steel rhiav, lub tsev qub renovation, ib puag ncig pej xeem chav dej thiab lwm yam tsev, ua tau raws li cov kev xav tau ntawm thermal rwb thaiv tsev thiab kho kom zoo nkauj.
03

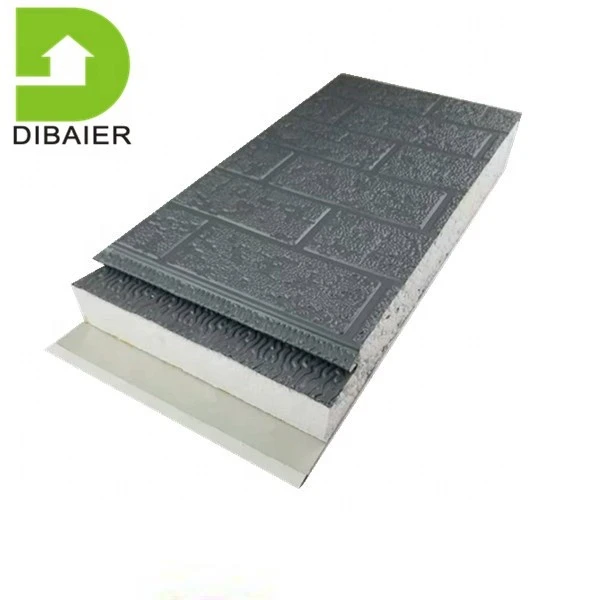

PU Sandwich Decorative Hlau Vaj Huam Sib Luag yog cov khoom lag luam tseem ceeb ntawm lub tuam txhab, txais yuav peb - txheej txheej txheem ntawm "nano anti-fouling xim-coated aluminium-zinc-magnesium steel phaj + siab - ntom nplaim- retardant} aluminium fouling, PU los ntawm corrosive core siab -siab foaming thiab precision forming txheej txheem. Cov khoom sib xyaw ua ke ntau yam zoo xws li thermal rwb thaiv tsev, hluav taws kub tsis kam thiab nplaim hluav taws kub, thiab zoo nkauj zoo nkauj. Nws muaj ntau tshaj 20 embossed qauv thiab pua pua ntawm cov xim sib xyaw ua ke, ua rau ntau txhiab qhov tshwm sim thiab muab kev xaiv nplua nuj rau kev tsim vaj tsev.
Core Product Structure
Txais yuav peb- txheej txheej sib xyaw ua ke tsim, lub zog sib txuas ntawm cov khaubncaws sab nraud povtseg ntau dua lossis sib npaug ntawm 0.15MPa, nrog kev ua haujlwm zoo heev, tsis muaj kev pheej hmoo delamination, thiab cov qauv ruaj khov thiab txhim khu kev qha
Txheej Txheej
0.23-0.32mm xim-coated aluminium-zinc-magnesium steel phaj (SPHC cov khoom), kho nrog nano anti- fouling thev naus laus zis, nrog rau tus kheej- kho muaj nuj nqi. Cov txheej txheej saum npoo yog cov khoom siv ruaj khov polyester (HDP), pem hauv ntej txheej tuab yog 15μm (primer 5μm + topcoat 10μm), thiab cov txheej txheej rov qab yog 5μm, nrog rau huab cua sab nraum zoov mus txog 15 xyoo thiab tsis yooj yim fading.
Core Txheej
40-60kg/m³ siab- ntom ntom polyurethane (PU) core, kho nrog kev tiv thaiv hluav taws tshwj xeeb, kaw- cell rate Ntau dua lossis sib npaug li 93%, thermal conductivity tsawg li 0.018-0.024W/(m·K), nrog rau ob qho tib si ultra-npaum thermal rwb thaiv tsev thiab kev ua haujlwm zoo heev.
Hauv qab Txheej
Aluminium ntawv ci los yog txhuas ntawv ci daim ntaub los tiv thaiv - txheej corrosion (2.6 txhob lo lo ntxhuav - 20 txhob lo lo ntxhuav thickness), uas plays lub luag hauj lwm ntawm ya raws - pov thawj thiab tshav kub rwb thaiv tsev, thaiv dej vapor intrusion. Aluminium foil ntawv yog tsim rau cov qauv cib thiab cov vaj huam sib luag tiaj tus, thiab cov ntaub ntawv txhuas ntawv yog tsim rau Great Wall panels
Core Zoo
Super Efficient Thermal rwb thaiv tsev & txuag hluav taws xob
PU core muaj cov thermal conductivity tsawg li 0.018W / (m·K), ua rau nws yog ib qho ntawm cov khoom siv thermal rwb thaiv tsev zoo. Cov nyhuv thermal rwb thaiv tsev ntawm 16mm tuab vaj huam sib luag yog sib npaug ntawm 37cm tuab zoo tib yam cib phab ntsa, zoo dua li ntawm 30mm XPS vaj huam sib luag thiab 50mm EPS vaj huam sib luag, uas tuaj yeem txo cov cua sov hauv tsev thiab cua txias thiab ua tiav lub zog-txuag cov txiaj ntsig.
Safe Fire Resistance & Durable Corrosion Resistance
Qhov ntsuas hluav taws tuaj yeem yog B1 (nplaim- hom retardant) lossis B2 (hom combustible). Cov khoom lag luam qib B1 yog qhov nyuaj rau hlawv thiab tsis yooj yim rau kev sib kis thaum raug hluav taws, thiab tsis txhob hlawv tam sim ntawd thaum qhov hluav taws kub raug tshem tawm; B2 cov khoom lag luam muaj qee yam nplaim taws- cov nyhuv retardant thiab tsis muaj cov pa phem lossis cov pa phem raug tso tawm thaum lub sij hawm combustion. Lub nto aluminium-zinc-magnesium steel phaj muaj 55% txhuas, 43.5% zinc, thiab 1.5% silicon{13}}magnesium alloy txheej, muaj zog corrosion kuj, thiab cov khoom siv lub neej tuaj yeem ncav cuag ntau tshaj 30 xyoo.
Lub teeb yuag siab zog & yooj yim installation
Lub vaj huam sib luag hnyav tsuas yog 2.88-3.9kg / ㎡ (hloov raws li lub vaj huam sib luag tuab), nrog lub zog siab thiab cuam tshuam, thiab lub zog compressive ntawm 2.0-2.7kg / cm², uas tuaj yeem tiv taus cua thiab daus load. Txais cov txiv neej-poj niam buckle splicing installation txoj kev, tsis xav tau cov cuab yeej complex, kev tsim kho efficiency yog ntau tshaj 50% siab tshaj ntawm cov khoom siv, thiab nws tsis txwv los ntawm lub caij thiab huab cua, haum rau kev tsim kho txhua xyoo puag ncig.
Strong Decorativeness & Flexible Customization
Nws muaj ntau tshaj 20 embossed qauv xws li nruab nrab groove, elastic txheej kev ntxhib los mos, mosaic, cib kev ntxhib los mos, thiab ntoo kev ntxhib los mos, ua ke nrog ntau pua xim, ua rau ntau txhiab qhov tshwm sim. Ob - xim customization yog txaus siab (ntxiv 2 yuan ib square meter), lub vaj huam sib luag thickness tuaj yeem yog 14/16/20mm, qhov ntev tuaj yeem hloov kho los ntawm 2 meters, 2-6 meters rau kev thauj mus los yooj yim, thiab tuaj yeem ua kom zoo raws li lub thawv loj.
Cov ntsiab lus Technical Parameters
|
Lub npe Parameter |
Txheem tus nqi |
Test Standard |
|
Vaj Huam Sib Luag Thickness |
0.23-0.32 hli |
GB/T 12755 |
|
Core Thickness |
14/16/20 mm |
GB/T 8813 |
|
Core Density |
40-60kg / m³ |
GB/T 6343 |
|
Thermal conductivity |
0.018-0.024W/(m·K) |
GB/T 10294 |
|
Compressive zog |
2.0-2.7 kg / cm² |
GB/T 8813 |
|
Kaw-Cell Rate |
Ntau dua lossis sib npaug li 93% |
Enterprise Standard |
|
Cov dej nqus dej |
Tsawg dua lossis sib npaug li 3% |
GB/T 8810 |
|
Kev ntsuas hluav taws |
Qib B1/B2 |
GB/T 20284 |
|
Bonding Strength |
Ntau dua lossis sib npaug rau 0.15MPa |
GB/T 14525 |
|
Kev khiav hauj lwm qhov kub thiab txias |
-50℃~ 150 degree |
ASTM C 1334 Cov |
|
Huab cua Resistance |
Cov khoom lag luam sab nrauv tseem muaj xim nrawm rau 15 xyoo |
Kev Lag Luam Test Standard |
|
Suab rwb thaiv tsev Volume |
Ntau dua lossis sib npaug li 24 decibels |
GBJ175-1999 |
|
Siv dav dav |
360-390 hli |
Enterprise Standard |
|
Qhov siab tshaj plaws |
Tsawg dua los yog sib npaug li 6 m |
Enterprise Standard |
Daim ntawv thov Scenario
Siv dav hauv cov phab ntsa sab nrauv, phab ntsa sab hauv, lub ru tsev, thiab cov phiaj xwm qab nthab ntawm ntau lub tsev, cov xwm txheej tseem ceeb suav nrog
Cov vaj tse nyob
Niaj hnub nimno villas, chav tsev, lub teeb steel keel villas, prefabricated tsev
Commercial & Public Buildings
Cov tsev ua haujlwm, khw muag khoom, chaw ua yeeb yam, tshav dav hlau terminals, siab - chaw nres tsheb ceev
Cov tuam tsev muaj
Factories, ntau lawm rhiav, logistics warehouses, lub teeb steel rhiav
Cov xwm txheej tshwj xeeb
Kev kho vaj tse sab nrauv ntawm cov tsev qub, cov tsev txawb thiab cov tsev nyob ruaj khov hauv thaj chaw scenic, ib puag ncig cov chav dej, cov chav cais cov khib nyiab, European thiab American style box transformers
Ntim & Xa
Ntim Cov Qauv
Vaj Huam Sib Luag Ntim:Txais cov yas tiv thaiv zaj duab xis + thawv + strapping ntim, los yog kraft ntawv composite daim ntaub ntim, ntim yooj yim. Qhov tuab ntawm 8 daim / pob yog li 13-13.5cm, thiab 10 daim / pob yog li 17cm. Customized box LOGO (luam tawm hauv nruab nrab ntawm peb sab) muaj.
Accessories Ntim:Aluminium alloy accessories tau ntim rau hauv 20 daim / pob (10 daim / pob rau qee qhov), nrog qhov ntev hloov raws li hom khoom siv. Lub ntim dav yog 0.085-0.25m, thickness 0.003-0.16m, thiab ntev 3/6m.
Kev xa khoom & Kev thauj mus los
Delivery Cycle:Cov kev qhia tshwj xeeb raug xa tawm hauv 10-15 hnub ua haujlwm, thiab cov khoom lag luam tshwj xeeb raug xa tawm hauv 15-25 hnub ua haujlwm.
Tsheb thauj mus los Adaptability:Txhawb FOB, CIF, CFR, DDP thiab lwm yam kev lag luam. Lub thawv 20ft tuaj yeem thauj khoom 1500-1600㎡ (2.9m ntev panels), thiab lub thawv 40ft siab tuaj yeem thauj khoom txog 3600㎡ (2.95m ntev panels).
Quality Assurance:Cov khoom lag luam dhau qhov kev tshuaj ntsuam xyuas zoo, muab 1-2 xyoo lav zoo, txhawb nqa kev qhia video thiab kev sib tham hauv online tom qab muag, thiab kev txhawb nqa mus ntev.
Yam khoom siv
Cov khoom siv txhawb nqa tshwj xeeb ua kom muaj kev txhim kho zoo thiab siv tau zoo, nrog rau ntau yam khoom siv ntxiv
Aluminium Alloy Accessories
Pib daim, kaw daim, nruab nrab seams, sab hauv thiab sab nraud ces kaum, lub qhov rooj thiab qhov rais npog, thiab lwm yam., nrog kev xaiv ntev ntawm 3/6 meters, xim xws li dawb, dub, thiab xim sib xws, hnyav 0.15-0.7kg / m, pom zoo rau cov neeg muas zaub txawv teb chaws.
Tib yam -Material Accessories
Raws li cov khoom vaj huam sib luag, haum rau sab nrauv / sab hauv phab ntsa. Pav ca- hom vaj huam sib luag tuaj yeem ua rau qhov ntev ntawm 40cm, 1m, 3m, thiab cov menyuam- pleev xim rau cib- qauv ob- xim qauv tsuas yog txhawb nqa ntev 40cm.
Cov khoom siv ntxiv
Fasteners xws li tus kheej -tapping screws, expansion tube screws, rivets, thiab sealing cov ntaub ntawv xws li sealing strips thiab waterproof kua nplaum.
FAQ
01.Cov qauv embossed thiab xim ntawm PU sandwich hniav hlau vaj huam sib luag puas tuaj yeem kho tau?
02.Yuav ua li cas xaiv ntawm qab aluminium ntawv ci ntawv thiab txhuas ntawv ci ntaub? Puas muaj nqi ntxiv rau qhov hluav taws kub -cov khaubncaws sab nraud povtseg?
03.Dab tsi yog qhov txawv ntawm ANSI thiab Metric Roller Chain Sprockets?
04.Yuav ua li cas thov cov qauv? Tus qauv them nqi yog dab tsi?
05.Dab tsi HS codes yuav tsum tau rau cov khoom export?
06.Puas yog ib pab kws tshaj lij rau kev teeb tsa? Puas yog txoj kev tsim kho complex?
